M-900 Automatic SMT Laser Marking Machine
M-900 Automatic SMT Laser Marking Machine is Online Fully Automatic Printing Machine.It is a professional equipment for printing 1D code, QR code, text, symbol or graphic on the surface of PCB.
● Generate high-quality 1D and 2D codes, text, logos, optical characters, etc
● 4 types of laser (CO2, UV, Green & Fibre) available for optimal performance
● Support Top and Bottom dual-head configuration for greater flexibility and throughput
● Standard dual-camera configuration, simultaneous reading and marking to enhance
throughput and quality
● Equipped with fume detection
● Safety enclosure with interlock switches that prevents pollution of the shop floor
● Optional dual conveyor configuration for higher throughput and greater flexibility
● Optional Z axis for additional flexibility in marking on different part heights
● Separate dust collector comes in standard
● High efficiency, create high quality marks, easy to maintain
TECHNICAL SPECIFICATIONS
Model No.
M2-900L
M2-940L
M2-945L
M2-960L
Laser Type
CO2
UV
Green
Fiber
Wave Length
10.6 (μm)
355 (nm)
532 (nm)
1064 (nm)
Laser Output Power (W)
5/10
5/10
5/10
10/20/30
Laser Spot Diameter (μm)
80, 110, 140
15
Scanning Speed (mm/s)
6,000
5,000
Repeatability (μm)
±20
PCB Top Side Clearance (mm)
25
PCB Bottom Side Clearance (mm)
20
Conveyor Height (mm)
900±50
Barcode Reader
CCD on-line Detection
Barcode Type
1D, 2D RSS codes, numbers, text, graphics
Applicable Materials
Resin, Rubber, Plastic & Paper
Resin, Rubber, Plastic, Paper & Metal
PCB / Substrate Thickness (mm)
0.2 ~ 6
Minimum PCB Size (mm)
50 × 50
Max PCB Size (mm)
Single Conveyor：750(X) x 580(Y) w/ Flipper Standard：480(X) x 460(Y) w/ Flipper Optional：510(X) x 460(Y)
Single Conveyor Marking Area (mm)
Top side: 530(X) x 580(Y)
Top side: 500(X) x 580(Y)
Top side: 530(X) x 580(Y)
Bottom side: 510(X) x 580(Y)
Bottom side: 480(X) x 580(Y)
Bottom side: 510(X) x 580(Y)
w/ Flipper: 480(X) x 450(Y)
Dual Conveyor Marking Area (mm)
Top side: 480(X) x 260(Y)
Top side: 420(X) x 260(Y)
Top side: 450(X) x 260(Y)
Bottom side: 400(X) x 260(Y)
Bottom side: 350(X) x 260(Y)
Bottom side: 380(X) x 260(Y)

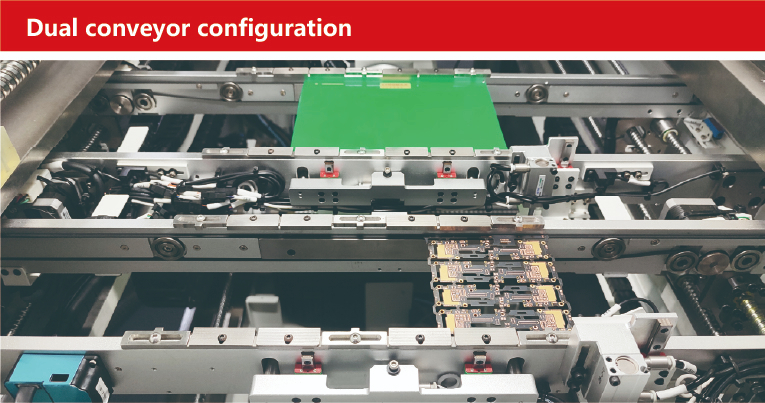

Dual Conveyor
Option
Auto Z-axis Adjustment
Option
Integrated Board Flipper
Optional (not compatible with dual-head option)
Large FOV Camera
Option
Intelli-recognition
Option
High-Efficiency Dust Collector
Option
Dual Laser Light Source (dual head , designated by DH on model no.)
Optional (not compatible with integrated board flipper)
Cooling Type
Air Cooling
Air Cooling / Water Cooling
Air Cooling
Power Supply
220V / single-Phase / 50Hz / 8A
Air Pressure (bar)
6
Weight (kg)
Approx. 1000
Dimensions (mm)
1100(W)×1,675(D)×1,535(H)

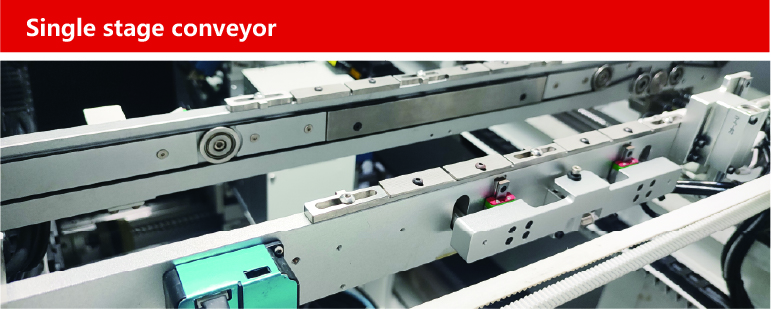

Single stage conveyor

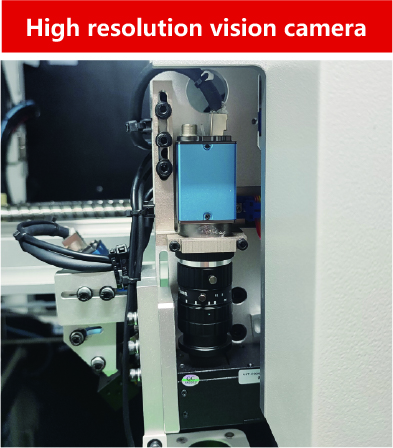

High resolution vision camera

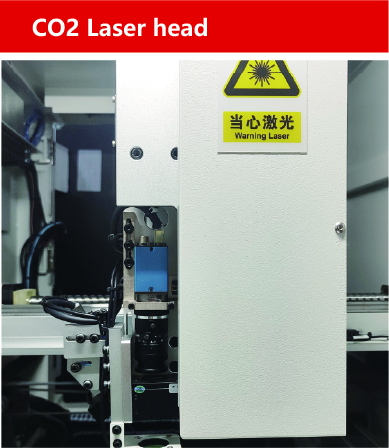

CO2 Laser head

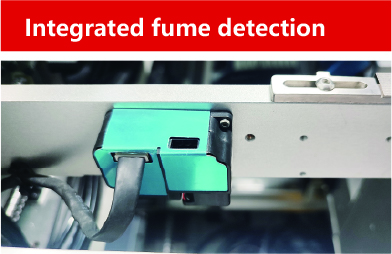

Integrated fume detection

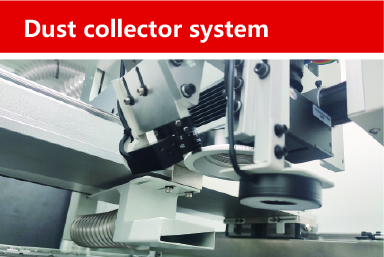

Dust collector system

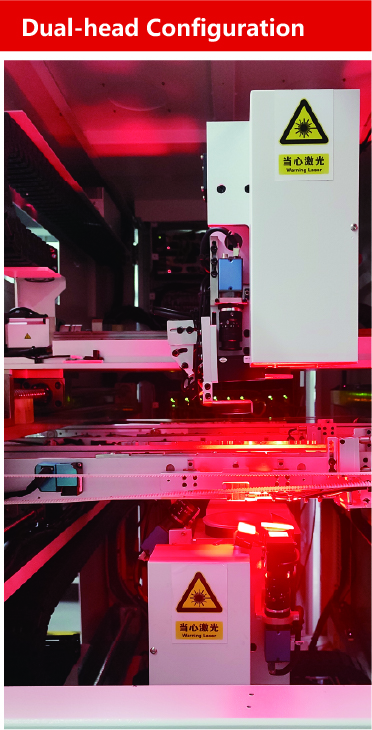

Dual-head Configuration
IPv6 network supported
