Inline Laser PCB Depaneling Machine

Inline Laser PCB Depaneling Machine

With the development of the electronics manufacturing industry, PCB designs are trending towards thinner and lighter forms. The shipment volume of PCBs with thickness below 0.8mm has been increasing year by year, placing higher demands on depaneling processes. Traditional depaneling methods can no longer fully meet the requirements of precision and reliability.

To achieve high-speed, low-stress flexible depaneling, Youngpool Technology proudly introduces the LD-4 Laser Depaneling Machine.

The machine comes with a standard 60W green laser, enabling high-speed and precise cutting, and supports both inline and offline operation modes, providing flexibility for diverse production scenarios. Additionally, the compact design, with a width of less than 0.8 meters, effectively saves valuable production line space.

● Supports inline/offline operation modes

● Standard 60W laser for high-speed depaneling

● Precise cutting with no mechanical stress

● Cutting accuracy <0.05mm

● Multi-layer safety protection to eliminate light pollution

● Intelligent dust removal system

● Graphical programming

● Three-stage guide rail

● Machine width: 0.77 meters

TECHNICAL SPECIFICATIONS

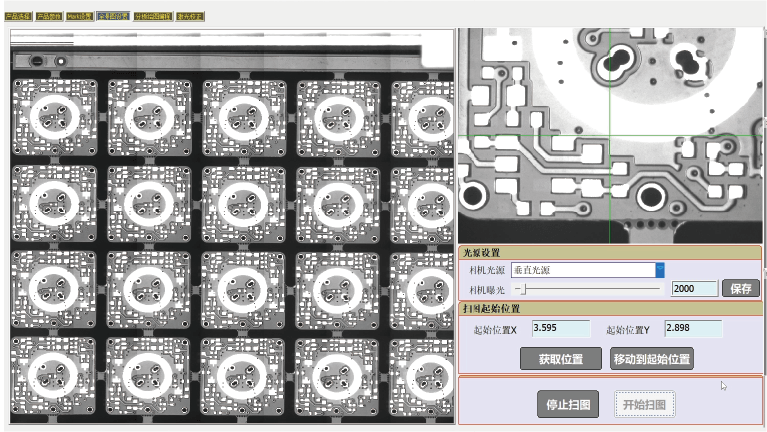

One-click scanning with image programming

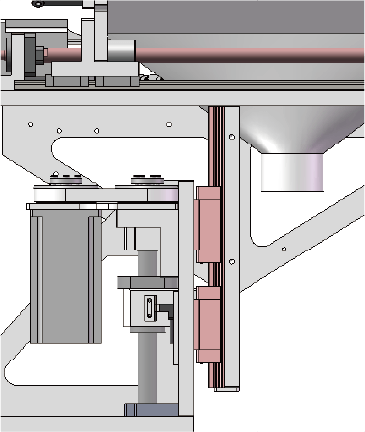

Programmable Z-axis with adjustable height

Supports both inline and offline operation modes

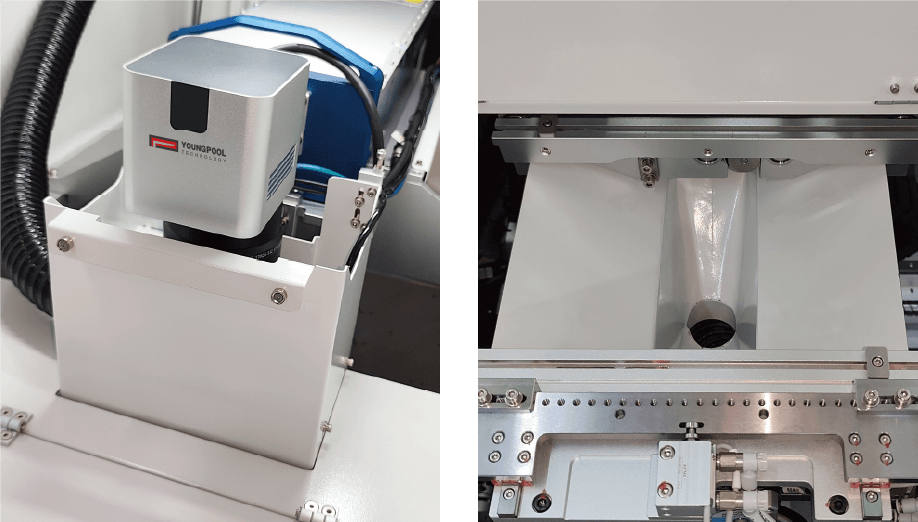

High-efficiency dust collection system

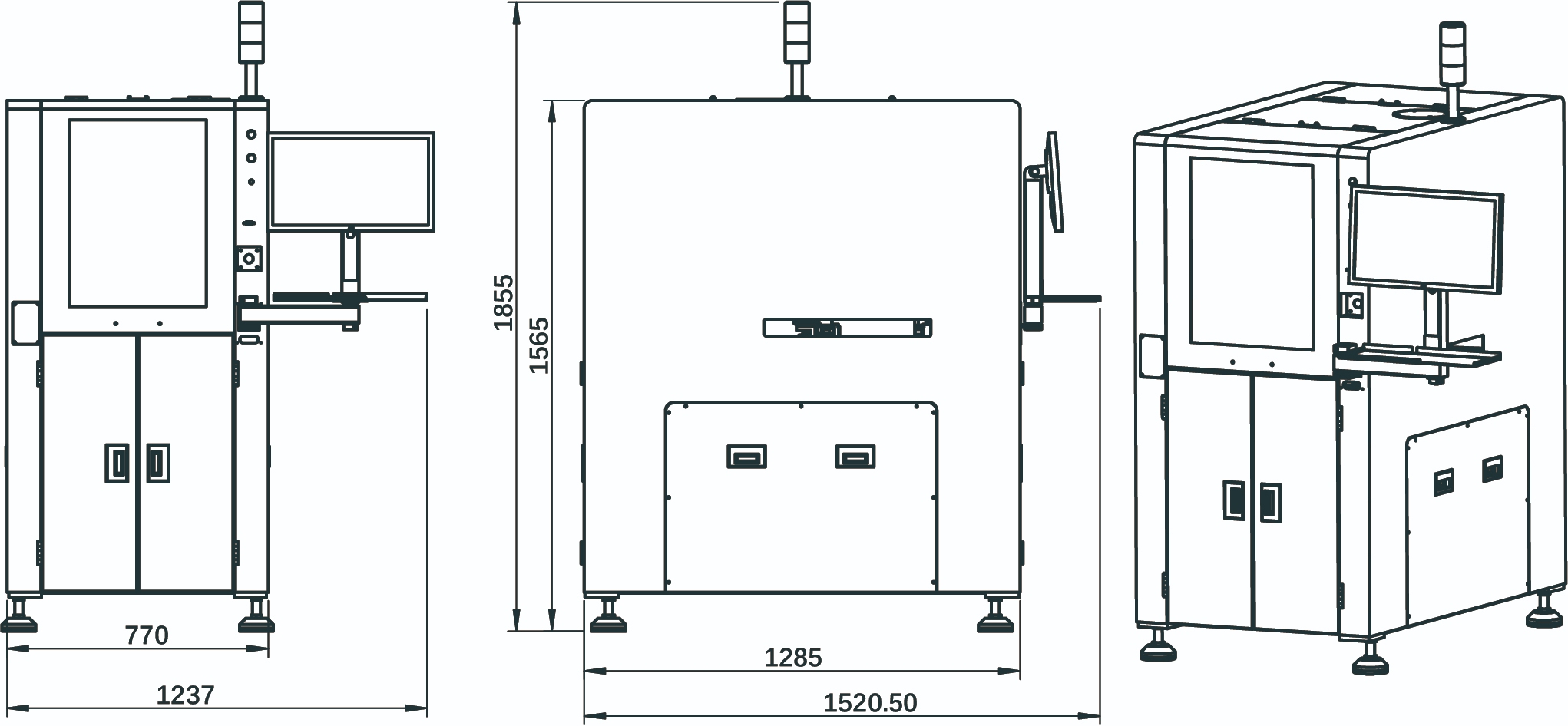

Dimensions
