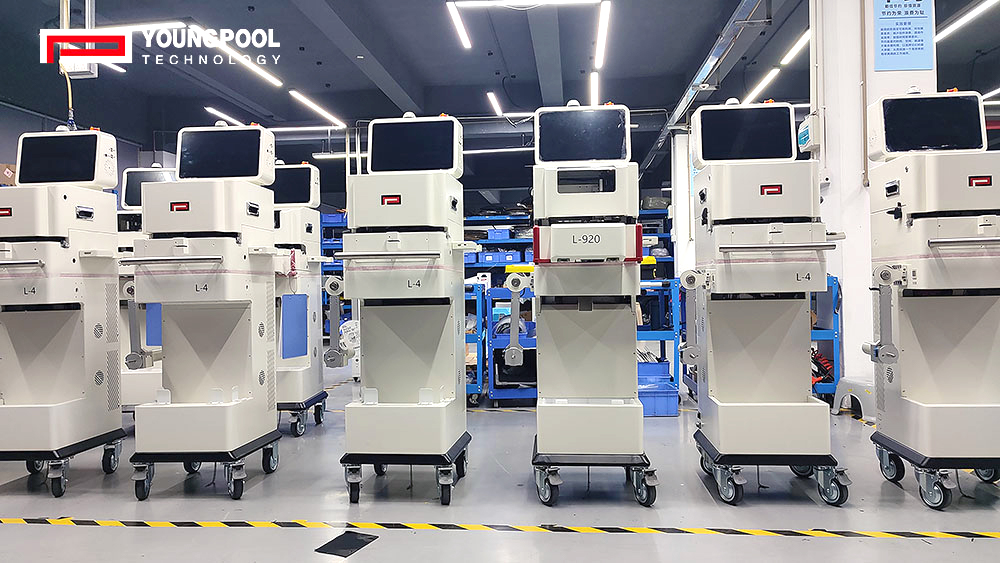

During high-speed SMT mounting processes, the splicing operation when material reels are exhausted remains a critical point affecting overall efficiency. Traditional splicing methods relying on manual visual inspection are not only inefficient but also carry inherent risks of full-batch quality defects caused by incorrect materials, reversed polarity, or component damage. The intelligent vision system integrated into Youngpool Technology's L-900 Auto Splicing Machine offers a mature automated solution for this persistent challenge, transforming the splicing process from simple material joining into a precise incoming quality inspection.

The core advantage of this system lies in its independent visual positioning and identification capabilities. Before executing the splicing operation, the system performs high-precision image capture and comparison of components from both the new and expiring tape. This process extends beyond basic sprocket hole alignment to comprehensively examine component appearance, dimensions, markings, and polarity. When the vision system detects material models inconsistent with the preset BOM or identifies polarity orientation errors, it immediately interrupts the splicing process and triggers an alarm, preventing incorrect materials from entering the production line at the source.

Crucially, this vision system features independent motion control from the film application mechanism. This allows the camera to complete image capture and processing while the mechanical structure prepares for film application, enabling parallel operation that adds virtually no extra time to the splicing cycle. In practical operation, this "inspect-first, decide-later" workflow maintains high efficiency with a splicing cycle time of ≤10 seconds while achieving consistent splicing pass rates exceeding 98%.

Beyond error prevention, the vision system seamlessly coordinates with automatic empty reel detection and cutting functions. By identifying sprocket holes and component positions, it accurately locates the last valid component and executes splicing and cutting at the correct subsequent gap, minimizing material waste. This capability delivers particularly significant material savings for high-cost IC components.

As manufacturing undergoes deep digital and intelligent transformation, purely mechanical splicing can no longer meet "zero-defect" production requirements. The intelligent vision system in the L-900 elevates the auto splicing machine from an auxiliary tool to a critical link in production line quality control. Through precise and efficient image recognition technology, it provides stable and reliable splicing quality assurance for SMT production, serving as a powerful enabler for high-efficiency, high-quality flexible manufacturing.
