As SMT production lines evolve toward multi-variety, small-batch, and high-reliability manufacturing, the increasing diversity of materials and frequent line changeovers have made the splicing process a critical node affecting line continuity and quality stability. Under high-precision manufacturing requirements, splicing accuracy directly impacts the first-pass yield of placement machines and the overall SMT line yield.

The limitations of traditional manual splicing are becoming increasingly evident in this context. Manual operations rely heavily on operator experience and are prone to identification errors when handling multiple component types. At the same time, manual processes cannot effectively verify the components themselves; even when label information is correct, the risks of mixed or incorrect materials remain. In addition, inconsistent splicing cycle times make it difficult to match the continuous operation requirements of high-speed placement equipment, increasing overall production uncertainty.

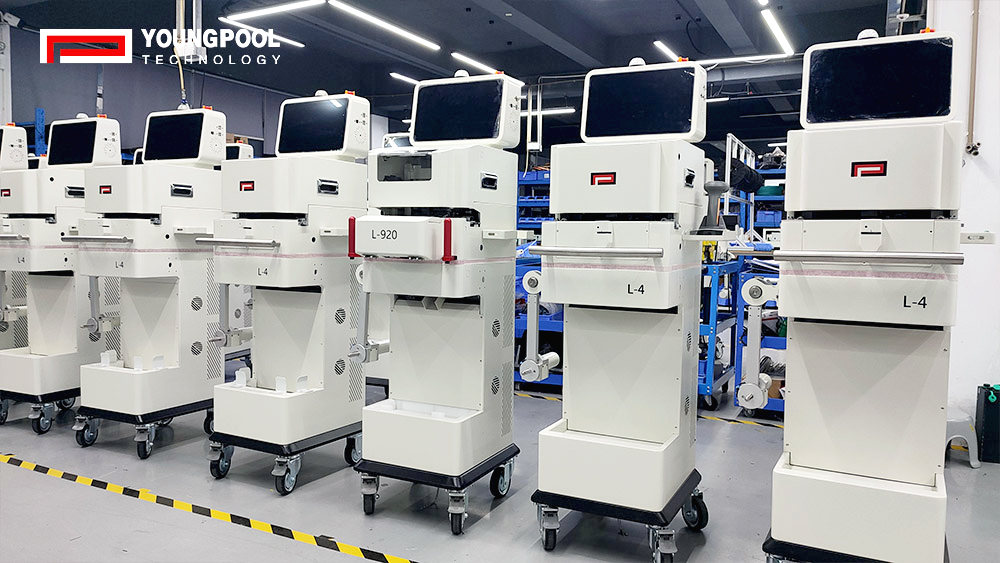

To address these challenges, Youngpool Technology has integrated an LCR measurement-based error-proofing system into its L-900 Auto Splicing Machine. By performing real-time electrical parameter measurement of resistors, capacitors, and inductors, and comparing the results with system data, the machine enables direct verification of the component itself, effectively reducing the risk of incorrect materials being loaded onto the line at the source. This approach overcomes the limitations of traditional methods that rely solely on label and visual identification, significantly improving process reliability.

The system adopts an independent X, Y, and Z-axis measurement structure to ensure process stability and repeatable positioning accuracy. Its variable probe design supports components as small as 01005, meeting the demands of miniaturized devices. Combined with ±0.05% measurement accuracy and a dual-side measurement method, overall inspection reliability is further enhanced. In addition, the system can be integrated with vision inspection and MES data interaction, forming a multi-dimensional verification mechanism and enabling closed-loop control of the splicing process.

Overall, by incorporating the LCR measurement-based error-proofing system into the splicing stage, Youngpool Technology transforms the process from experience-driven to data-verified, making splicing more controllable and traceable, and providing a solid foundation for stable SMT line operation.
